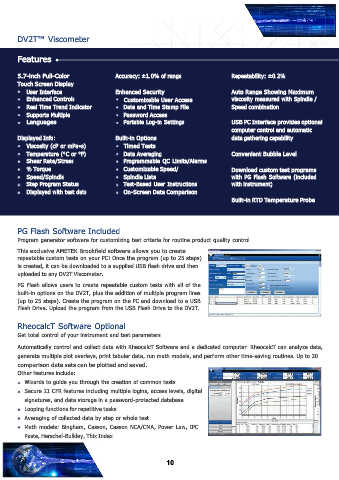

Page 12 - AMETEK BROOKFIELD Viscometer

DV2T™ Viscometer

Features

5.7-inch Full-Color Accuracy: ±1.0% of range Repeatability: ±0.2%
Touch Screen Display
User Interface Enhanced Security Auto Range Showing Maximum
Enhanced Controls Customizable User Access viscosity measured with Spindle /
Real Time Trend Indicator Date and Time Stamp File Speed combination
Supports Multiple Password Access
Languages Portable Log-in Settings USB PC Interface provides optional
computer control and automatic
Displayed Info: Built-in Options data gathering capability
Viscosity (cP or mPa•s) Timed Tests
Temperature (°C or °F) Data Averaging Convenient Bubble Level
Shear Rate/Stress Programmable QC Limits/Alarms
% Torque Customizable Speed/ Download custom test programs
Speed/Spindle Spindle Lists with PG Flash Software (included
Step Program Status Test-Based User Instructions with instrument)
Displayed with test data On-Screen Data Comparison
Built-in RTD Temperature Probe

PG Flash Software Included
Program generator software for customizing test criteria for routine product quality control
This exclusive AMETEK Brookfield software allows you to create
repeatable custom tests on your PC! Once the program (up to 25 steps)
is created, it can be downloaded to a supplied USB flash drive and then
uploaded to any DV2T Viscometer.

PG Flash allows users to create repeatable custom tests with all of the
built-in options on the DV2T, plus the addition of multiple program lines
(up to 25 steps). Create the program on the PC and download to a USB
Flash Drive. Upload the program from the USB Flash Drive to the DV2T.

RheocalcT Software Optional

Get total control of your instrument and test parameters
Automatically control and collect data with RheocalcT Software and a dedicated computer. RheocalcT can analyze data,
generate multiple plot overlays, print tabular data, run math models, and perform other time-saving routines. Up to 20
comparison data sets can be plotted and saved.
Other features include:
Wizards to guide you through the creation of common tests
Secure 21 CFR features including multiple logins, access levels, digital
signatures, and data storage in a password-protected database
Looping functions for repetitive tasks
Averaging of collected data by step or whole test
Math models: Bingham, Casson, Casson NCA/CMA, Power Law, IPC
Paste, Herschel-Bulkley, Thix Index

10
