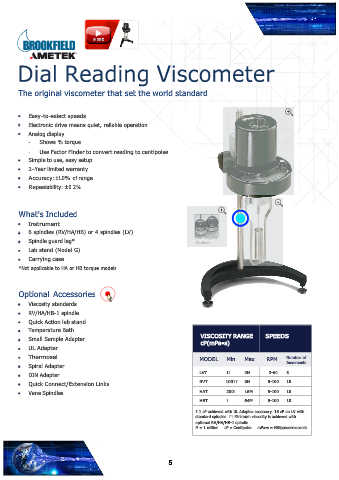

Page 7 - AMETEK BROOKFIELD Viscometer

The original viscometer that set the world standard

Easy-to-select speeds
Electronic drive means quiet, reliable operation
Analog display

- Shows % torque
- Use Factor Finder to convert reading to centipoise
Simple to use, easy setup
2–Year limited warranty
Accuracy: ±1.0% of range
Repeatability: ±0.2%

What's Included

Instrument
Easy Speed
6 spindles (RV/HA/HB) or 4 spindles (LV) Adjustment
and On/Off
Spindle guard leg* Control
Lab stand (Model G)
Carrying case
*Not applicable to HA or HB torque models

Optional Accessories

Viscosity standards
RV/HA/HB-1 spindle
Quick Action lab stand
Temperature Bath
VISCOSITY RANGE SPEEDS
Small Sample Adapter cP(mPa•s)
UL Adapter
Thermosel MODEL Min. Max. RPM Number of
Spiral Adapter Increments
DIN Adapter LVT 1† 2M .3-60 8
Quick Connect/Extension Links RVT 100†† 8M .5-100 10
Vane Spindles HAT 200† 16M .5-100 10
HBT † 64M .5-100 10

† 1 cP achieved with UL Adapter accessory. 15 cP on LV with
standard spindles. †† Minimum viscosity is achieved with
optional RV/HA/HB-1 spindle.
M = 1 million cP = Centipoise mPa•s = Millipascal•seconds

5
