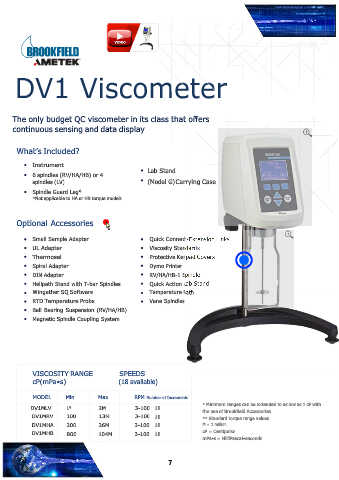

Page 9 - AMETEK BROOKFIELD Viscometer

The only budget QC viscometer in its class that offers
continuous sensing and data display

What’s Included?

Instrument
Lab Stand
6 spindles (RV/HA/HB) or 4
spindles (LV) (Model G) Carrying Case
Spindle Guard Leg*
*Not applicable to HA or HB torque models

Optional Accessories

Small Sample Adapter Quick Connect/Extension Links
UL Adapter Viscosity Standards
Thermosel Protective Keypad Covers
Spiral Adapter Dymo Printer
DIN Adapter RV/HA/HB-1 Spindle
Helipath Stand with T-bar Spindles Quick Action Lab Stand
Wingather SQ Software Temperature Bath
RTD Temperature Probe Vane Spindles
Ball Bearing Suspension (RV/HA/HB)
Magnetic Spindle Coupling System

VISCOSITY RANGE SPEEDS
cP(mPa•s) (18 available)

MODEL Min. Max. RPM Number of Increments
* Minimum ranges can be extended to as low as 1 cP with
DV1MLV 1* 2M .3-100 18
the use of Brookfield Accessories
DV1MRV 100 13M .3-100 18 ** Standard torque range values
DV1MHA 200 26M .3-100 18 M = 1 million
DV1MHB 800 104M .3-100 18 cP = Centipoise
mPa•s = MilliPascal•seconds

7
