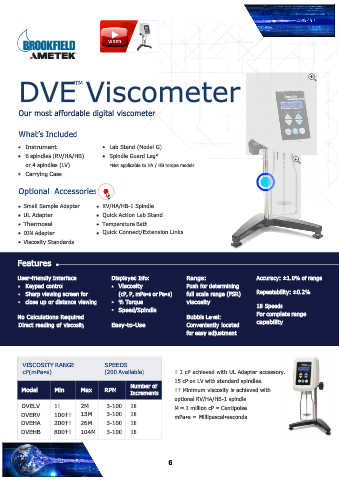

Page 8 - AMETEK BROOKFIELD Viscometer

DVE Viscometer
TM

Our most affordable digital viscometer

What’s Included

Instrument Lab Stand (Model G)
6 spindles (RV/HA/HB) Spindle Guard Leg*
or 4 spindles (LV) *Not applicable to HA / HB torque models
Carrying Case

Optional Accessories

Small Sample Adapter RV/HA/HB-1 Spindle
UL Adapter Quick Action Lab Stand
Thermosel Temperature Bath
DIN Adapter Quick Connect/Extension Links
Viscosity Standards

Features

User-friendly Interface Displayed Info: Range: Accuracy: ±1.0% of range
Keypad control Viscosity Push for determining
Sharp viewing screen for (cP, P, mPa•s or Pa•s) full scale range (FSR) Repeatability: ±0.2%
close up or distance viewing % Torque viscosity 18 Speeds
Speed/Spindle For complete range
No Calculations Required Bubble Level:
Direct reading of viscosity Easy-to-Use Conveniently located capability
for easy adjustment

VISCOSITY RANGE SPEEDS

cP(mPa•s) (200 Available) † 1 cP achieved with UL Adapter accessory.
15 cP on LV with standard spindles.
Number of
Model Min Max RPM Increments †† Minimum viscosity is achieved with
optional RV/HA/HB-1 spindle.
DVELV 1† 2M .3-100 18 M = 1 million cP = Centipoise
DVERV 100†† 13M .3-100 18 mPa•s = Millipascal•seconds
DVEHA 200†† 26M .3-100 18
DVEHB 800†† 104M .3-100 18

6
