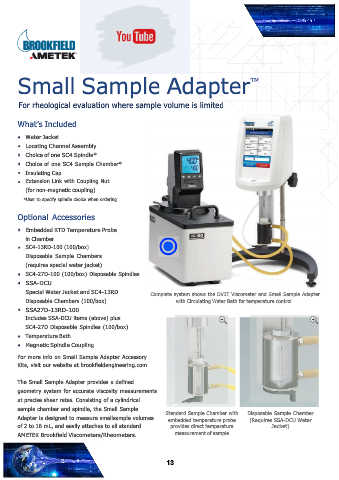

Page 15 - AMETEK BROOKFIELD Viscometer

Small Sample Adapter TM

For rheological evaluation where sample volume is limited

What’s Included

Water Jacket
Locating Channel Assembly
Choice of one SC4 Spindle*
Choice of one SC4 Sample Chamber*
Insulating Cap
Extension Link with Coupling Nut
(for non-magnetic coupling)
*User to specify spindle choice when ordering

Optional Accessories

Embedded RTD Temperature Probe
in Chamber
SC4-13RD-100 (100/box)
Disposable Sample Chambers
(requires special water jacket)
SC4-27D-100 (100/box) Disposable Spindles
SSA-DCU
Special Water Jacket and SC4-13RD Complete system shows the DV2T Viscometer and Small Sample Adapter
Disposable Chambers (100/box) with Circulating Water Bath for temperature control.
SSA27D-13RD-100
Includes SSA-DCU items (above) plus
SC4-27D Disposable Spindles (100/box)
Temperature Bath
Magnetic Spindle Coupling

For more info on Small Sample Adapter Accessory
Kits, visit our website at brookfieldengineering.com

The Small Sample Adapter provides a defined
geometry system for accurate viscosity measurements
at precise shear rates. Consisting of a cylindrical
sample chamber and spindle, the Small Sample
Standard Sample Chamber with Disposable Sample Chamber
Adapter is designed to measure smallsample volumes embedded temperature probe (Requires SSA-DCU Water
of 2 to 16 mL, and easily attaches to all standard provides direct temperature Jacket)
AMETEK Brookfield Viscometers/Rheometers. measurement of sample

BRO-SSA-REV.C brookfieldengineering.com
13
