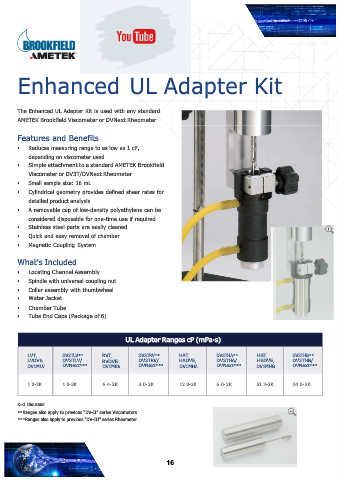

Page 18 - AMETEK BROOKFIELD Viscometer

Enhanced UL Adapter Kit

The Enhanced UL Adapter Kit is used with any standard
AMETEK Brookfield Viscometer or DVNext Rheometer.

Features and Benefits

• Reduces measuring range to as low as 1 cP,
depending on viscometer used
• Simple attachment to a standard AMETEK Brookfield
Viscometer or DV3T/DVNext Rheometer
• Small sample size: 16 mL
• Cylindrical geometry provides defined shear rates for
detailed product analysis
• A removable cap of low-density polyethylene can be
considered disposable for one-time use if required
• Stainless steel parts are easily cleaned
• Quick and easy removal of chamber
• Magnetic Coupling System

What's Included

• Locating Channel Assembly
• Spindle with universal coupling nut
• Collar assembly with thumbwheel
• Water Jacket
• Chamber Tube
• Tube End Caps (Package of 6)

UL Adapter Ranges cP (mPa·s)

LVT, DV2TLV** RVT, DV2TRV** HAT, DV2THA** HBT, DV2THB**
LVDVE, DV3TLV/ RVDVE, DV3TRV/ HADVE, DV3THA/ HBDVE, DV3THB/
DV1MLV DVNext*** DV1MRV DVNext*** DV1MHA DVNext*** DV1MHB DVNext***

1.0-2K 1.0-2K 6.4-2K 3.0-2K 12.8-2K 6.0-2K 51.2-2K 24.0-2K

K=1 thousand
**Ranges also apply to previous “DV-II” series Viscometers
***Ranges also apply to previous “DV-III” series Rheometer

16
