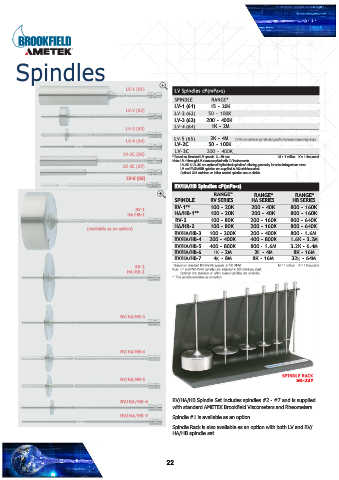

Spindles

LV-1 (61) 15 - 20K

LV-3 (63) 200 - 400K
1K - 2M

2K - 4M
LV-2C 50 - 100K

* Based on Standard LV speeds .3 - 60 rpm M = 1 million K = 1 thousand
Note: LV-1 through LV-4 are supplied with LV instruments.
LV-2C & LV-3C are optional “cylindrical spindles” offering geometry for calculating shear rates.
LV and RV/HA/HB spindles are supplied in 302 stainless steel.
Optional 316 stainless or teflon coated spindles are available
LV-5 (65)
RV/HA/HB Spindles cP(mPa•s)
RANGE* RANGE* RANGE*
SPINDLE RV SERIES HA SERIES HB SERIES
RV-1** 100 - 20K 200 - 40K 800 - 160K
HA/HB-1** 100 - 20K 200 - 40K 800 - 160K
RV-2 100 - 80K 200 - 160K 800 - 640K
HA/HB-2 100 - 80K 200 - 160K 800 - 640K
RV/HA/HB-3 100 - 200K 200 - 400K 800 - 1.6M
RV/HA/HB-4 200 - 400K 400 - 800K 1.6K - 3.2M
RV/HA/HB-5 400 - 800K 800 - 1.6M 3.2K - 6.4M
RV/HA/HB-6 1K - 2M 2K - 4M 8K - 16M
RV/HA/HB-7 4K - 8M 8K - 16M 32K - 64M

SR-23Y

RV/HA/HB Spindle Set includes spindles #2 - #7 and is supplied
with standard AMETEK Brookfield Viscometers and Rheometers.
Spindle #1 is available as an option.

Spindle Rack is also available as an option with both LV and RV/
HA/HB spindle set
